Mounting Guides

Mounting cutout dimensions and templates for Stereo Integrity products.

Jump to a product

  • BM-11
  • HT-18
  • M22 Tweeter
  • M25 mkII Tweeter
  • M28 Tweeter
  • M3 Carbon Midrange
  • SQL 12 Series 2
  • SQL 15 Series 2
  • TM65 mkIV Midbass
  • TM8

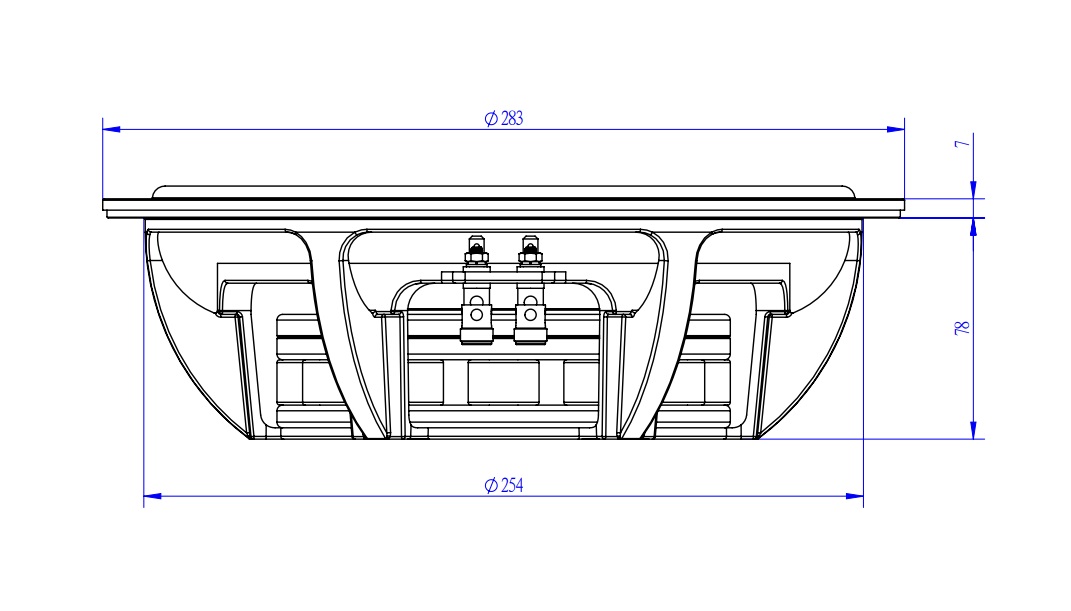

BM-11

View Product  ·  Back to top

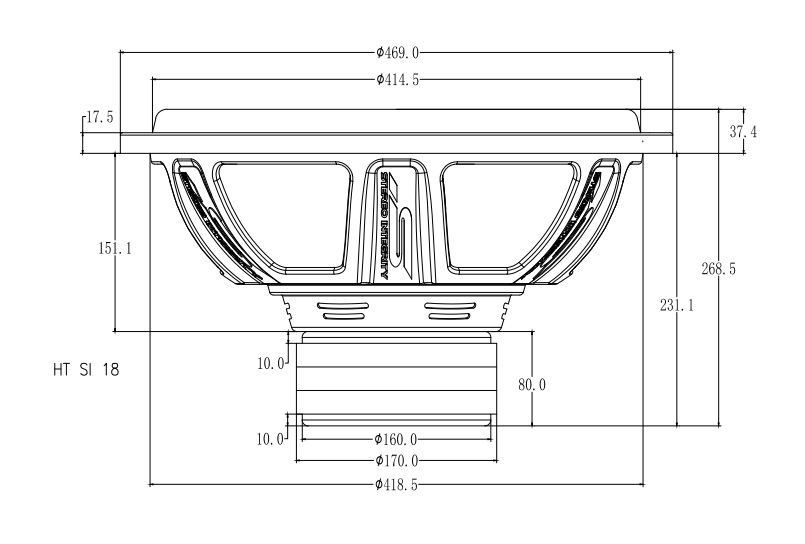

HT-18

View Product  ·  Back to top

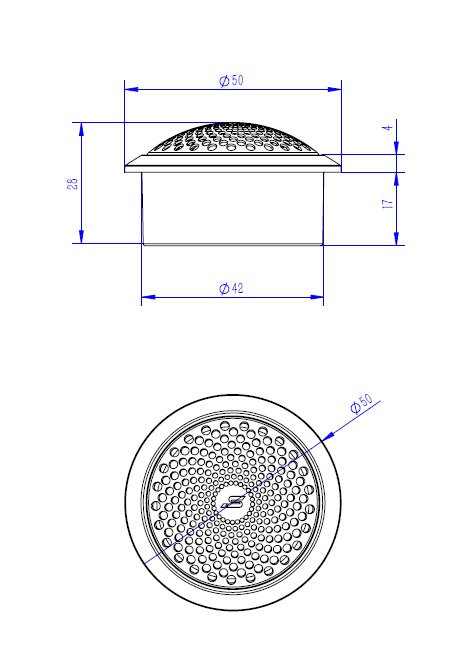

M22 Tweeter

View Product  ·  Back to top

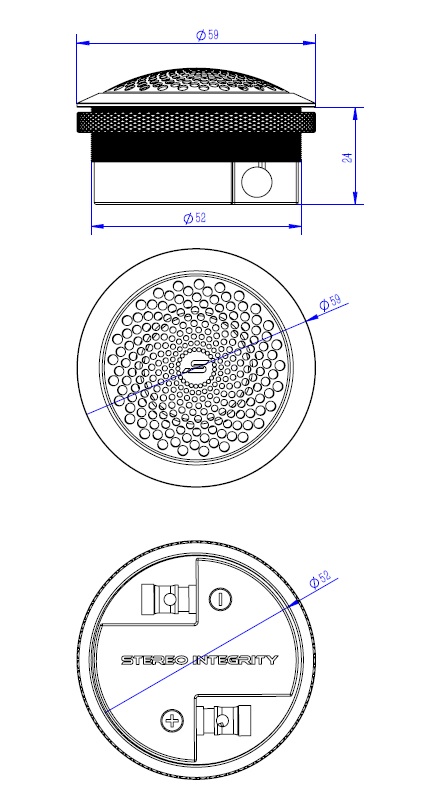

M25 mkII Tweeter

View Product  ·  Back to top

M28 Tweeter

View Product  ·  Back to top

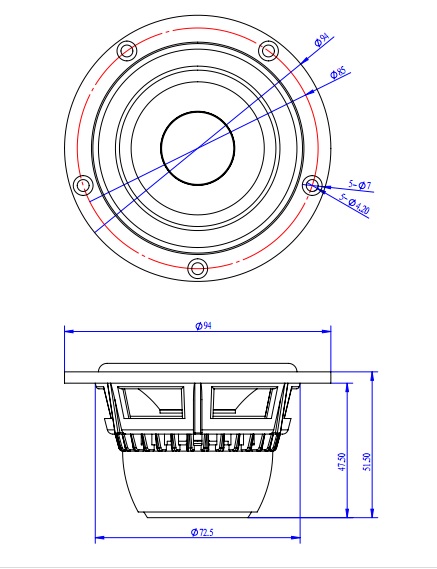

M3 Carbon Midrange

View Product  ·  Back to top

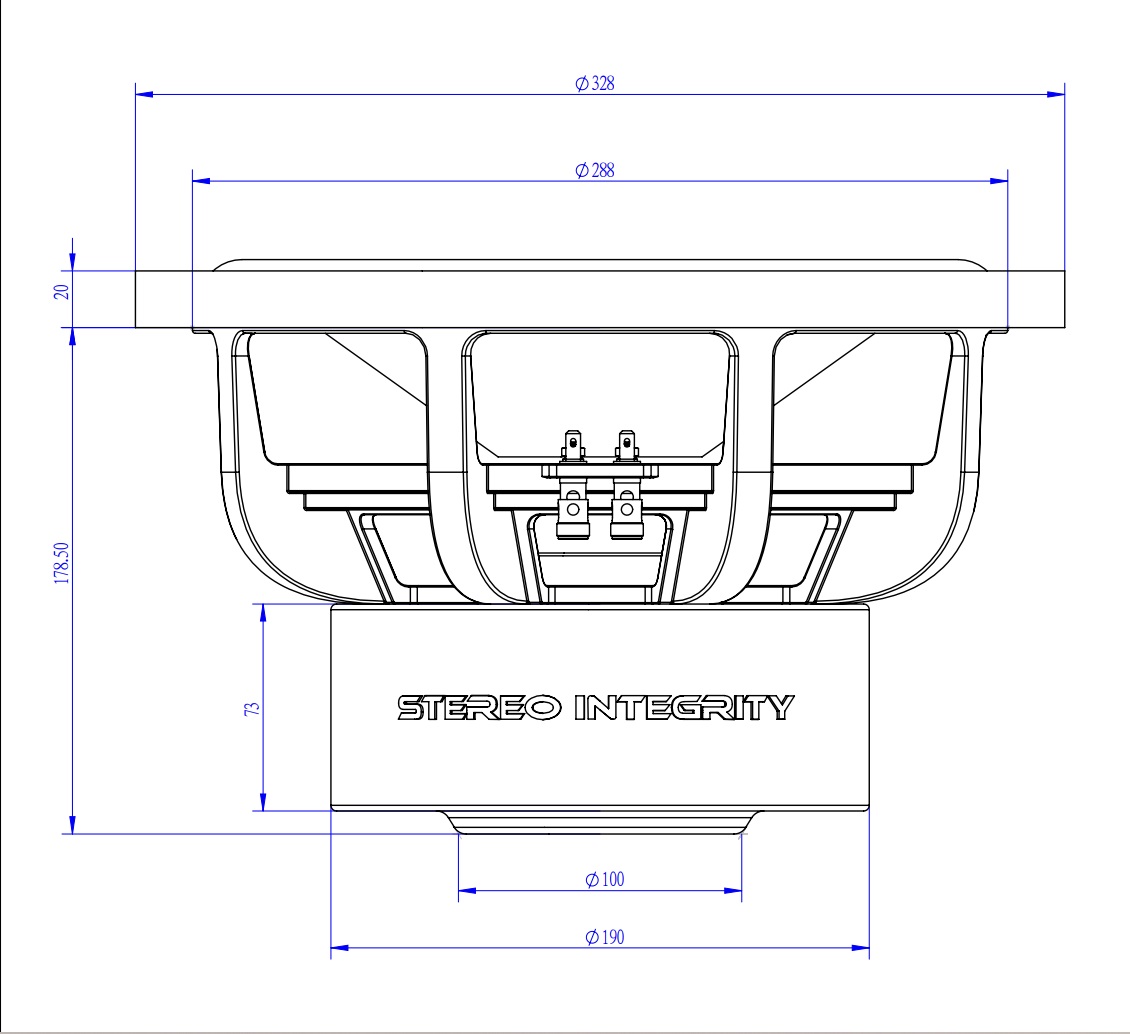

SQL 12 Series 2

View Product  ·  Back to top

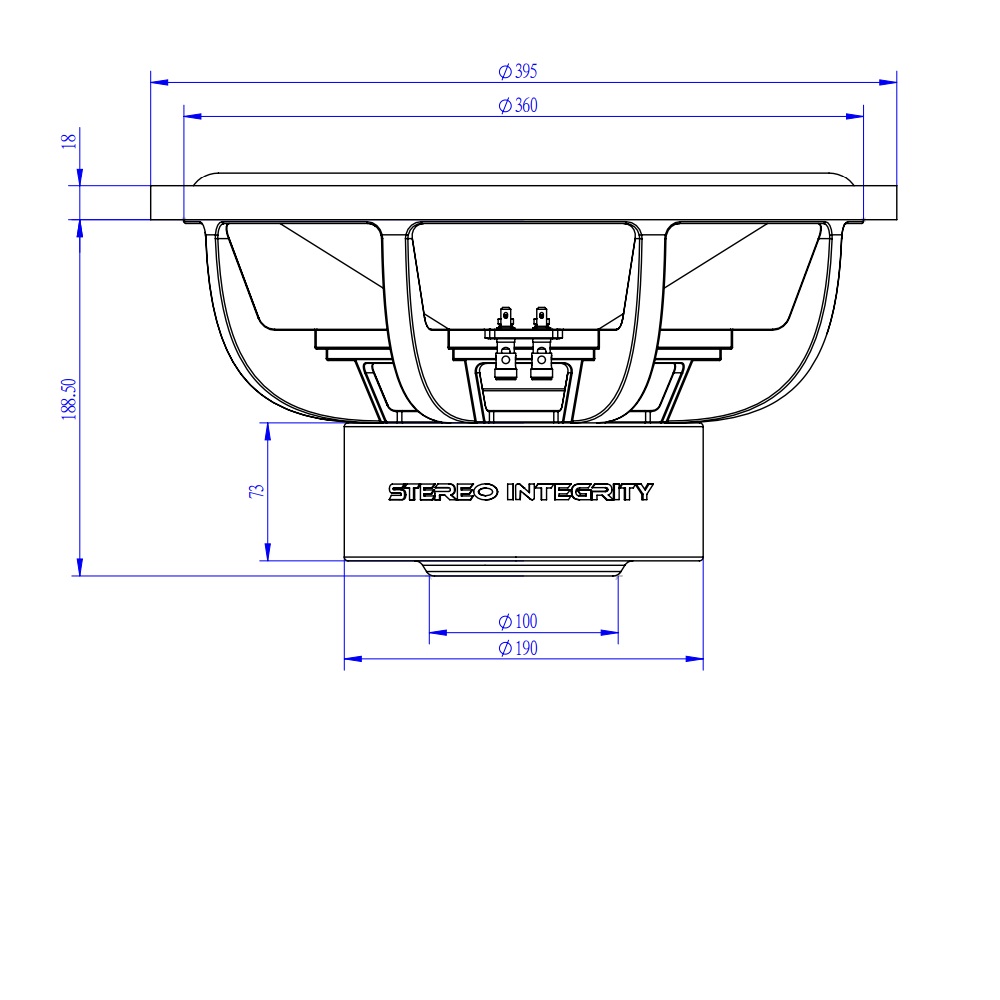

SQL 15 Series 2

View Product  ·  Back to top

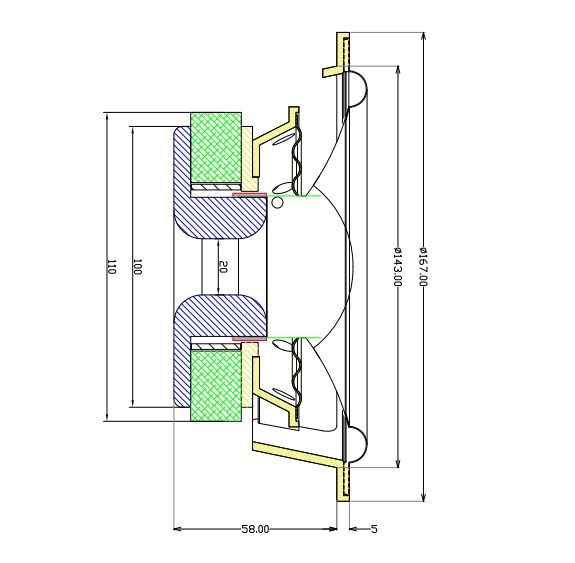

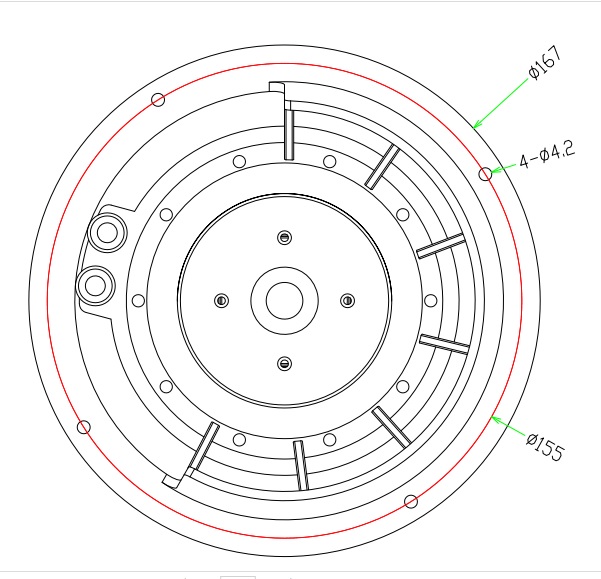

TM65 mkIV Midbass

View Product  ·  Back to top

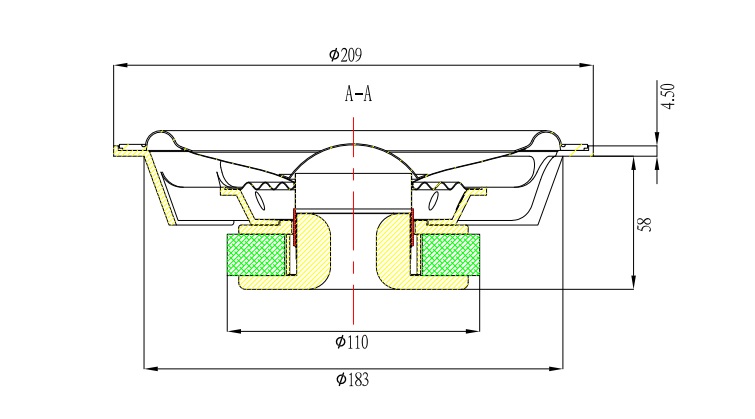

TM8

View Product  ·  Back to top
